Tubular Compactor Machine Used For Knitting Fabric
Tubular compactor usage: This machine is used for cotton ,Fiber ,Wood and other natural fiber tubular knittimg fabric presetting finishing. After treated by the machine , the fabric will have good handfeeling . Washing shrinkage can be reach 3-5% The compacting unit adpots seamless felt (thickness 20mm) combined teflon palte
Production Introduction
Tubular compactor machine is mainly used for setting the tubular cotton or blend fabric ( which cotton content is more than 50%) , This machine is used behind of the dryer machine after working by the tubular compactor machine .We could get high quality fabric , good washing shrinkage ,good handfeeling .Fabric surface is shine .
Fabric processing flow :
Fabric tensionless infeeding ----Magnetic shuttle stretcher ----Steam box (for moisturer) ---Two felt compacting and setting -----precise fodling (Rolling optional )
Machine parameter :
| Machine name | Tubular compactor |
| Working width | 1400mm |
| Cylinder diameter | 500mm |
Drying cylinder temperature | 180degree |
| Machine power | 7.8kw steam heated |
| Temperature accurancy | +-1 |
| Heat source | Steam , electric oil . thermal oil |
| Machine speed | 0-48m/min |
| Machine dimension | 7382X2950X2250mm |
| Machine weight | 5500kgs |
Machine configuration ：
Fabric tensionless infeeding ： Fabric guide frame
Magnetic shuttle stretcher ： Two magnetic levitation is controlled by two motors seperately .the belt of the shuttle plate delivery the fabric actively .So it control the weft screw remarkable
Steam box : SS double nozzles steam box
Compacting felt ： compacting felt is 20mm thickness .wrap angles by four deflection adjusting roller , Worked with the telflon to realize the preshrinkage . Equipped with tension sensor the tension force is automatically adjusted radial shrinkage is less than 3% .
Exit is hydrailic type precision folding : Fabric exit qutomatically .

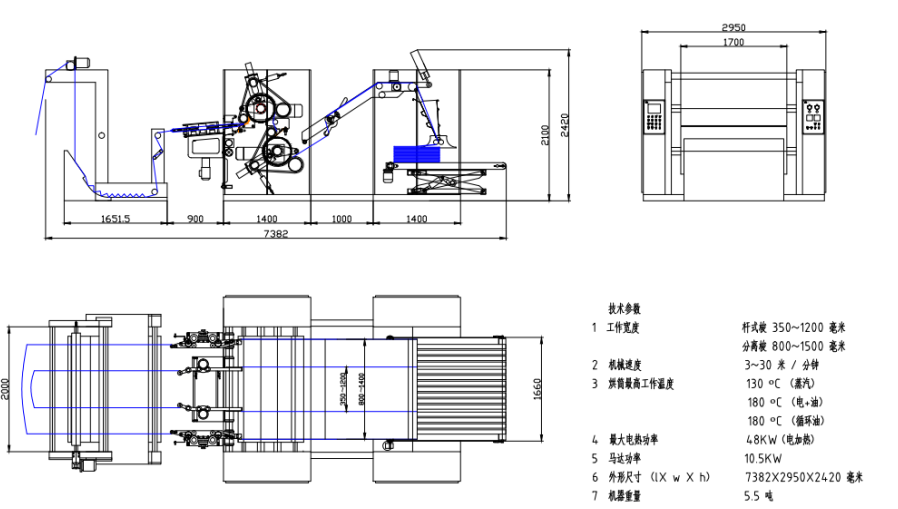

Machine drawing

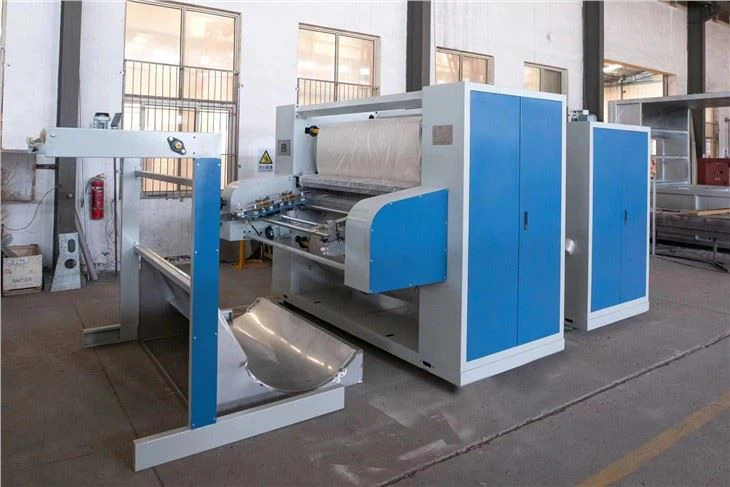

Machine photos
