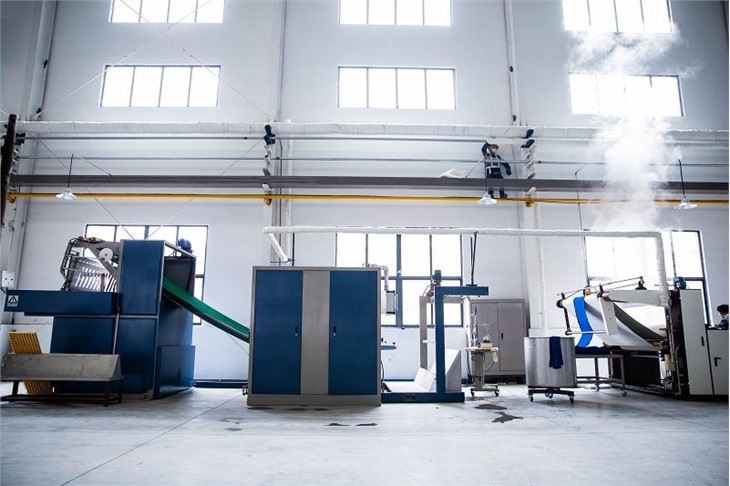

Tubular Compacting Machine
Compactor, unique in its class, allows high production speed and optimal fabric quality. Besides, our magnetic stretcher, with two independent motors, opens the tubular fabric and ensures the desired width by over-feeding.
Tubular Felt Compactor
Application：
Compactor, unique in its class, allows high production speed and optimal fabric quality. Besides, our magnetic stretcher, with two independent motors, opens the tubular fabric and ensures the desired width by over-feeding.
Tubular fabric felt Compactor guarantees excellent shrinkage, thus improving the dimensional stability of knitted fabrics and ensuring an superb handle.
Machine features ：
● J-Box photocell controllable
● Magnetic Stretcher is used to obtain the best desired width for the fabric. it specially designed to ensure no edge marks on the both side of the fabric. In order to obtain requested compaction values it is ensured that fabric is damped with entry steaming unit
● Compacting Unit cylinders’ diameter 500mm with chrome coated and polished. The contact surface between the cylinder and compacting endless felt is 270 degrees. For this reason, the fixation process offers a very fast production and a very stabilized with control. Finally washing and drying tests, the fabric passing through it , the dimensional stabilities is between 0-%5.
● Conveyor Belt and Cooling Unit the fabric is cooled on the conveyor belt of the fabric before it is being plaited. With neutral electro static bars the fabric will neutralized automatically.
● Plaiter fabric will be plaited and folded fabric is taken out with band automatically.
● There is a Load-Cell system balancing the tension between the two main felt cylinder.
● With Compactor it is possible to use different kind of fabrics like cotton, cotton/polyester, lycra fabric of nylon mixtures manufactured with fibers with or without cotton thread, single jersey, pique, interlock fabric, two or three yarns, or other fabrics.
● After washing, dying, and drying the fabric, JKD605 will help you obtain the desired shrinkage value for the fabric with excellent hand and feel.
● As an option the roll winding unit can be added to exit of the machine.
Machine parameter ：
Heated drums diameter /Width | Ø 500mm. / 1550 mm. |
Working width | 250-1200 mm. / At stretcher 1350 mm. |
Felt size | 1520x3950x20 mm. |
FELT (STEAM) | %50 Nomex %50 Polyester |
FELT (HOT OIL) | %70 Nomex %30 Polyester |
MAGNETIC STRETCHER & FEEDING | Magnet system & %20 Fabric feeding |
WORKING SPEED (Max.) | 43m/min |
VOLTAGE | 380-440V, 50-60 Hz |
ELECTRICITY CONSUMPTION | Steam: 13 kW +/-5% – Hot Oil: 67 kW +/-5% |
AIR PRESSURE | 0-6 bar |
AIR CONSUMPTION | 50 NL/h |
Steam consumption | Steam: 80-90 kg/h – Hot Oil: 50kg/h |
Drawing :
