Knitted Fabric Heat Setting Machine

Tubular Heat Setting Machine is manufactured for setting process of yarn in the knitting fabrics at the high temperature .Stabilization of fabric which is knitting from mixing yarn is provide before to dyeing process for to prevent to tension of the fabric.

Send Inquiry

Knitted fabric heat setting machine

Application：

Cotton – lycra , polyester, polyester-viskose, viskose-lycra and nylon mixing yarn types fabric could do thermo setting by the machine.

Maximum temperature of machine 200 °C and can adjustment for different temperature values by pneumatic heat oil valves.

When fabric is moving at the private designed fabric stretcher in the chamber is disturbed homophone by diagonal nozzle system . So some smooths at the fabric prevent by nozzle system due to between bands and edge at the fabric differentiates . When fabric exits from chamber , cooling group is making to shock cooling for to saving stabilization of fabric .

One , two or three line fabric can do heatsetting to dyed or greige fabric at the same time according to wanting . Fabric stratcher which face are connected with fabric manufactured from smooth stainless steel . So to dont allowing to unwanting tension and distortion at the fabric .

Machine confugation:

Infeeding	The infeed part includes infeed chamber,overfeeding mechanism and width adjust mechanism.
	Overfeeding wheel is made of polyurethane material,it is durable and has long lifespan.Overfeeding driven is precise controlled by inverter,overfeeding rate is steady.
	Manual width adjust,safety and convenient.
Hot air setting chamber	Equips one set 11kw motor and axial impeller,the triangle belt is driven between the motor and impeller shaft
	Thermal oil heating: equips high efficient winded type heat exchanger,the heat exchanger pipe is steel-alunium composite fin pipe. Electric heating: 45pcs(each piece 3KW) electrical tube.The electrical tube is controlled by group. Natural Gas or liquefied gas heating:equips stainless steel burner room.
	Equip pull-type filtering net in front of the blower,the filtering net is 20meshstainess steel net,filter out the fibers to avoid the pilus block the heat exchanger and nozzles.
	Four side walls of the chamber are insulated panels with thickness 100mm,the P type high temperature resistant rubber seal,double sealing,which could decrease the heat loss in maxsium,so as to save engergy.
	The heat chamber equips the dust exhaust system,the dust exhaust fan is centrifugal fan,dust exhaust volume is controlled by air door.
Exit plaiter mechanism assemble	This part consists of rubber roller mechanism,plaiter mechanism
	The rubber roller adopts pneumatic pressure on system,and the pressure system equips air cylinder,reversing valve and so on.
	The roller adopts super rubber,heat resistant,durable and long life span.
	Four plaiter rollers,two sets static electric removal device,four pieces high pressure static electric rod.
	Coolant mechanism equips two sets axial flow blower,big air volume,air is evenly.
Control valve （thermal oil heating）	Thermal oil heating mothod: adopts proportion type Bellows sealed electric three - way regulating valve
Electric heater （Electric heating ）	Electirc heating mothod:consist of electric heater,controlled by groups. Among them two groups are automatically control.
Electric heater （natural gas or liquefied gas ）	Natural gas or liquefied gas equips heating method: equips Hankfuel gas burner and stainless steel burner room.
Equips 8sets stretcher’s side bar, big size,middle size and small size,each 24set extendable bar, all the side bars and extendable bars are all made of stainless steel.

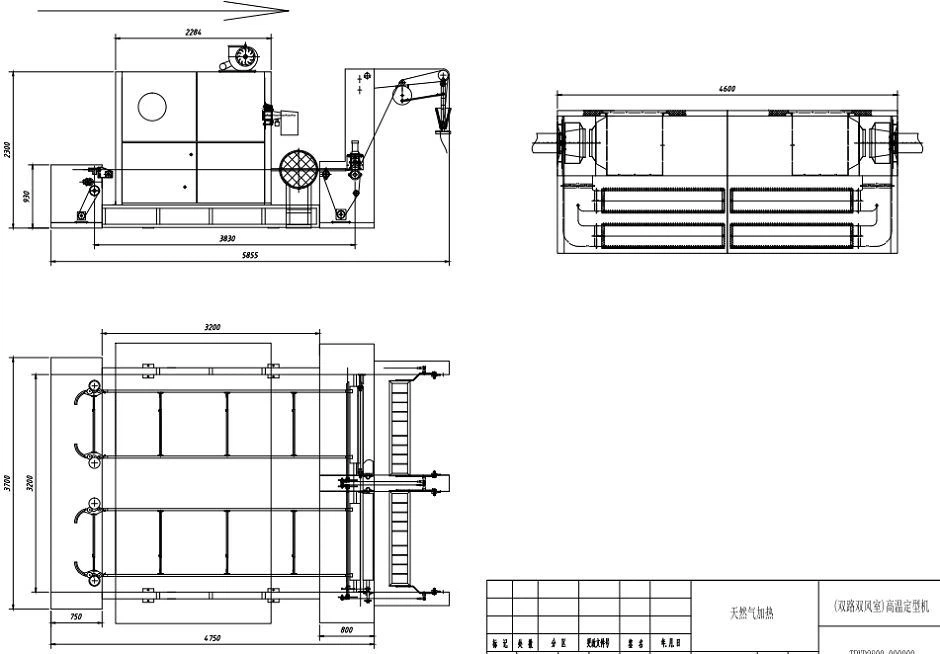

Machine drawing ：
