Tubular Relaxation Dryer
Tubular relaxation dryer is used for tubular fabrics and open width fabrics drying,suitable for cotton,blender and polyester.
Tubular relaxation dryer
Machine Usage:
Tubular relaxation dryer is used for tubular fabrics and open width fabrics drying,suitable for cotton,blender and polyester.
During drying,the fabrics are being supported by the net belts all the time,upper and lower nozzles are blower ,the fabrics are moving in wave form,after several times vibrating and beating,the moisture will be evaporated,and the fabrics are dried gradually.
During the whole drying process,the fabrics are in relax status,release the inside tension force fully,after preshrinking and setting to reach the ideal results
Machine characters:
1. The nozzles adopts Germany technology,upper nozzle will blow to seven directions.unique nozzle design,which could really realize the fabrics different position could be blowed from all sides,the fabrics move in wave shape,so the shrinking result will be the best. The shrinking rate could be 8%-10%.
2. The fan impeller adopts bolt to connect,could be disassemble completely,easy to maintain.
3. Alunium-steel composite fin pipe heat exchanger,which could raise temperature fastly,high efficient.
4. The air duct could be opened completely,very easy to clean the fibers inside of the nozzles.
Machine Drawing:
Technical parameters:
Name/Model | Five layers relax dryer /TPYH3300 |
Application | Drying the fabric,eliminating water and achieving the natural moisture content of the fabric |
Overfeeding rate | 0-30% |
Retraction shrinkage | 8-10% |
Suitable fabric | Knitting and woven fabric |
Advantages | Highest output machine in the world , under same consumption the daily output is 20% higher than Santex dryer .New generation relax dryer ,Saving energy , high efficient and easy to operate |
Max working width | 3300mm |
Evaporation capacity | 230KG/Chamber/h |
Mechanical speed | 4-45m/min |
Blower motor | Siemens 15kw 2 motors/chamber |
Inverter | Delta brand （ made in Taiwan ） |
Chamber No. | 3 |
Power supply | 380V /3Phase 50HZ |
Power capacity | 100kw |
Working type | Five layers recycle conveyor belts |
Net belt type | Martial Import from USA with Dupont coated |
Drying type for net belt | Each layer with motor +reducer +PLC+Inveter control |
Inverter controlled blower | Germany krantz technology Hot air Nozzles blow from 7 directions |
Heat source | Thermal oil |
Max drying temperature | 170 Degree |
Temperature control type | Each chamber’s temperature could be adjusted and controlled automatically |
Length of chamber | 2.1m |
Thickness of insulation board | 105mm |
Insulation material | Aluminum silicate with excellent insulation result |
Machine dimension | 13035mm*4342mm*4055mm |
World famous brand parts | Low voltage components :Schneider |
Color of our machine | Diamond blue +crystal white ( or customized) |

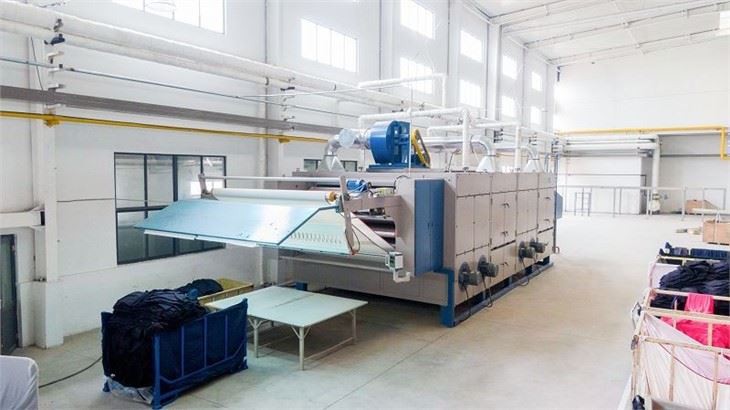

Machine photo ：
