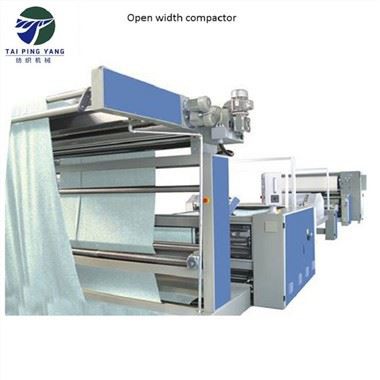

Knit Open Compactor Machine
Compaction equipment is suitable for open width knit fabrics to measure gsm of fabric for achieving exact dimensional stability as well as soft feel.
Knit open compactor machine
Machine usage :
Compaction equipment is suitable for open width knit fabrics to measure gsm of fabric for achieving exact dimensional stability as well as soft feel. The machine consists of a feeding frame by means of centering device and driven scroll rollers which is an equalizing stenter frame with overfeed roller and brush pinning arrangement.
The unit of drying of compacting machine drying have infra-red emitters are placed on either side of the machine. Compacting machine have infra-red emitters are placed on either side of the machine. The delivery side section consists of selvedge trimmer, edge dryer and a suction device, Exit roller, Width Adjustment device and the drive to the chain are housed in a exit box. Shima seiki is good brand name of compaction equipment.
Machine features:
● This machine is used as industrial machinery with stenter machine
● Open width machine control shrinkage in textile finishing,
● This machine have A.C. Inverter drives,
● Compacting machine applicable both for cotton knit
● This machine machine have PLC with touch screen.
● Compactor textile machine equipped with modem connectivity with interface
● Compactor textile machine should have online troubleshooting system.
● Metal detector exist in compactor textile machine
● Compactor textile machine works with this technique
● Gsm of fabric is controlled by this machine
Machine parameter :
Machine name | Open width compactor machine |
Working width | 2400.2600.2800.3000mm |
Heat source | Thermal oil ,Electric oil ,steam |
Mechanical speed | 5-35m/min |
Power | 27kw |
Steam consumption | 150-200kg/h |
Machine drawing :
